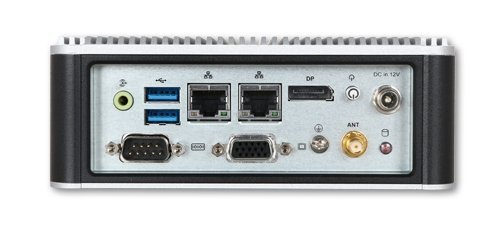

WEBS-2190
Embedded Compact Fan-less System with Intel® Atom® E3800 Series based NANO-ITX Board
Features :
- Fan-less and cable-less & small and exquisite design
- Fan-less solution with Quad/Dual-Core CPU
- Intel® Baytrail SoC base platform
- 1x Half-size Mini-PCIe socket (USB + PCIe x1 signal)
- 1x Antenna hole for WiFi or 3G/GPS module to use
- OP Vibration: 5Grms/10~500Hz
- OP Shock: 50G, 11msec
- IP40 Rating
Description
The Rugged Embedded fanless PC WEBS-2190 builds on Intel® Baytrail SoC and takes advantages of Intel® Atom® E3800 Series processor technologies, especially its vastly superior Quad-Core processing power and capability. The cost-effective CPU with high performance is of great use to build up a compact system, the WEBS-2190, it supports a wide temperature from -25°C to 60°C for fanless applications in harsh environment, such as POS, kiosk, digital signage, transportation and automation.
Specification
| System | |
|---|---|
|
M/B |
NANO-6060
|
|
Form Factor |
NANO-ITX
|
| System | |
|---|---|
|
CPU |
Atom® E2827 1.75GHz Atom® E3845 1.91GHz
|
|
Chipset |
Intel® SoC
|
|
BIOS |
Phoenix UEFI
|
|
Memory |
DDR3L/4GB
|
|
Graphic Controller |
Intel® Gen 7 Graphics
|
|
Audio Codec |
ALC892
|
|
Super I/O |
EC ITE IT8528
|
|
Super I/O |
EC ITE IT8528
|
|
Storage |
1x 2.5” SATA HDD/SSD 1x Micro-SD |
| External I/O | |
|---|---|
|
Serial |
1x RS-232/422/485
|
|
USB |
2x USB3.0
|
|
Display |
VGA, DP
|
|
Ethernet |
Intel® I210IT x 2 |
|
PS/2 |
N/A
|
|
Audio |
Line-out
|
|
D I/O |
N/A
|
|
Expansion |
1x Half-size Mini-PCIe
|
| PWR | |
|---|---|
|
System |
DC 12V
|
| Environment | |
|---|---|
|
OP Temp. |
-25°C ~ 60°C
|
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
150 x 150 x 53 mm
|
|
Weight |
1.3 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3367 |
(R).ATO.WEBS-2190.NANO-ITX System
|
