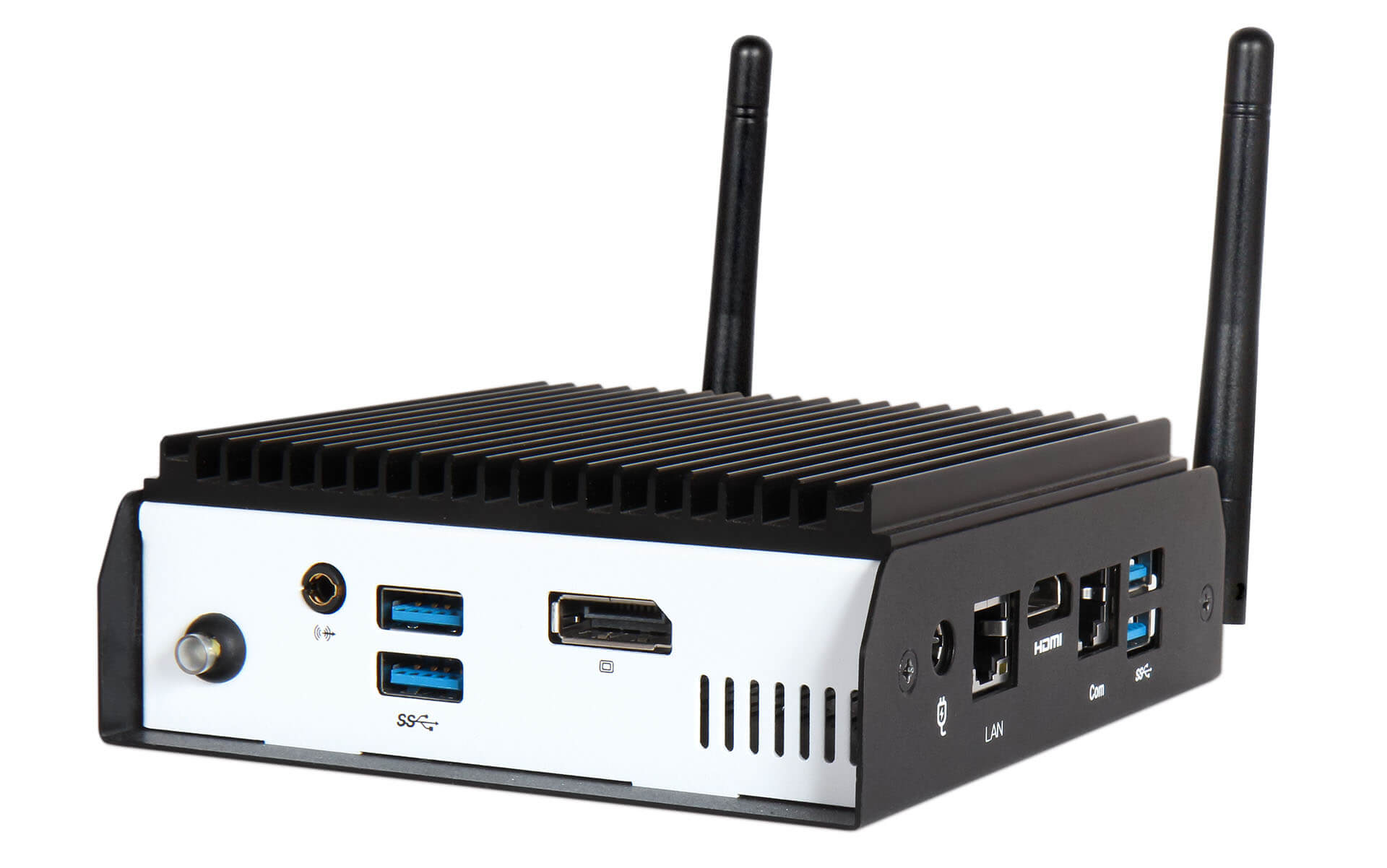

RICH-61D0
Embedded fan-less system with Intel® Apollo Lake NUC platform
Features :
- Intel® Atom® 14nm SOC with Dual/Quad Core
- Dual Channel DDR3L 1866 SO-DIMM up to 8G
- Dual display by DP & HDMI up to UHD resolution
- M.2 (E+A Key), SATAIII Port and MicroSD 3.0 socket
- DC-In 12V ~19V
- CE/FCC Class B approved
Description
Portwell Fanless Embedded-PC RICH-61D0 builds on Intel® Atom® Apollo Lake SOC supports Dual/Quad Core (up to 10W) that can support dual channel DDR3L memory. Support one Gigabit Ethernet port and one M.2 socket.
Specification
|
Model |
RICH-61D0
|
|
M/B |
WUX-3350/4200/3455 |
|
Form Factor |
NUC |
| System | |
|---|---|
|
CPU |
Intel® Atom® Apollo Lake SOC (N3350/N4200) supports Dual/Quad Core (up to 10W) with 2MB Cache
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L SO-Dimms/Up to 8GB
|
|
Graphic Controller |
Intel® Gen 9 Graphics supporting DirectX 12, OpenGL 4.2, OpenCL 2.0 HW accelerated video decoding supporting H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, VP9 |
|
Super I/O |
EC |
|
Storage |
1x SATA III port, 1x Micro-SD 3.0 socket Support Onboard eMMC 5.0 (32G/64G)
|
| External I/O | |
|---|---|
|
Serial |
1x RS-232
|
|
USB |
4x USB3.0
|
|
Display |
HDMI, DP
|
|
Ethernet |
Realtek® RTL8111H
|
|
PS/2 |
N/A
|
|
Audio |
Mic-in or Line-out
|
|
D I/O |
N/A
|
|
Expansion |
1x M.2 Key E 2230 for wireless module support WiFi, BT, 3G & 4G
|
| PWR | |
|---|---|
|
System |
DC 12V~19V
|
| Environment | |
|---|---|
|
OP Temp. |
0°C ~ 60°C
|
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz IEC 60068-2-6 |
|
Shock |
50G, 11 msec, IEC 60068-2-27
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
113 x 135 x 41 mm
|
|
Weight |
1.5 Kg |
| Ordering Guide | |
|---|---|
|
AS5-3537 |
(R).ATO.RICH-61D0. NUC System.
|
