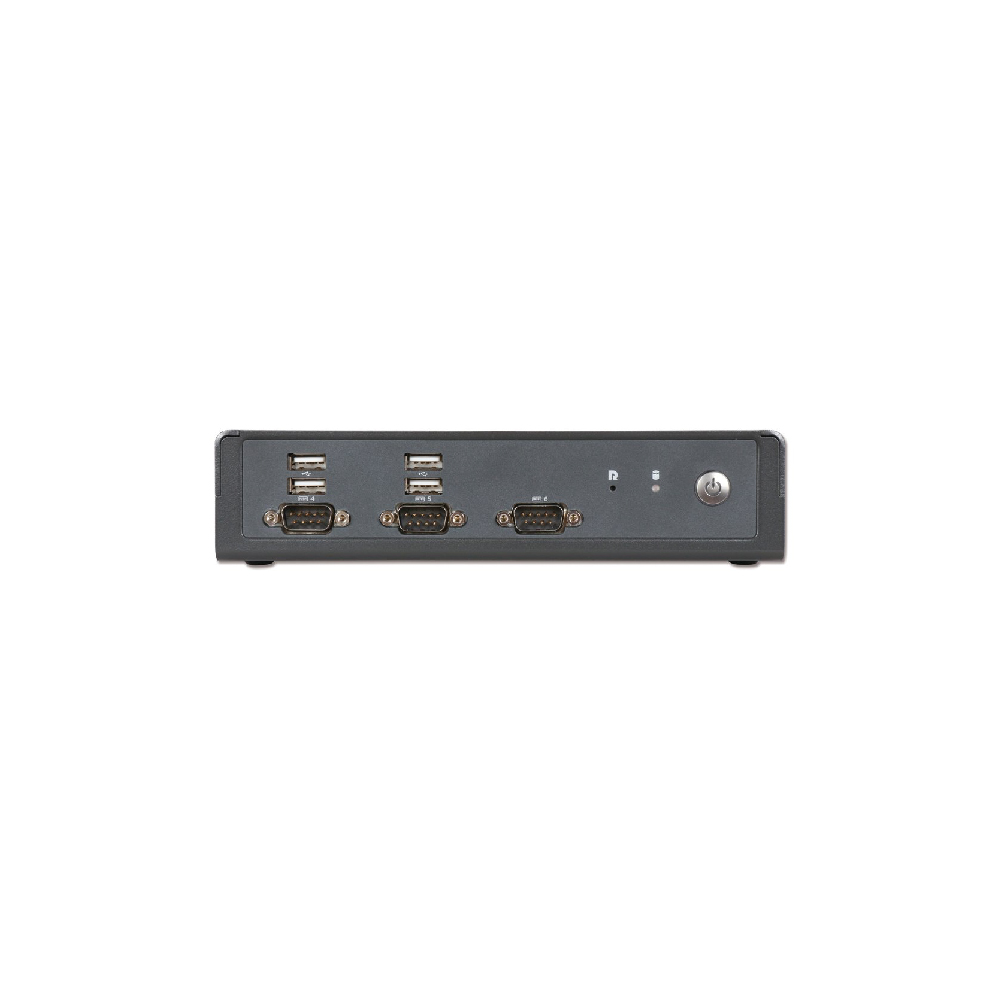

RICH-33B0-8171
Embedded Rugged Fan-less System with Intel® Celeron® Processor based Mini-ITX Board
Features :
- Fan-less system
- Intel® Celeron® Processor N3150 support
- Dual channel SO-DIMM socket up to 8G DDR3L memory
- 1x mSATA, 1x 2.5” SATA HDD/SSD (Option)
- 3x RS-232/422/485, 3x RS-232, 4x USB3.0, 4x USB2.0
- Dual Gigabit Ethernet Ports
Description
Portwell Embedded Computer RICH-33B0-8171 builds on Intel® Celeron® Processor N3150, that can support dual channel DDR3L memory, support dual Gigabit Ethernet ports, one mSATA socket and one Mini-PCIe socket. The RICH-33B0-8171 is idealplatform with rich I/O and high resolution for automation, POS, kiosk and digital signage applications.
Specification
| System | |
|---|---|
|
M/B |
WADE-8171
|
|
Form Factor |
Mini-ITX
|
| System | |
|---|---|
|
CPU |
Intel® Celeron® N3000 Series Processor
|
|
Chipset |
Intel® SoC
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L/8GB
|
|
Graphic Controller |
Intel® HD Graphics Family
|
|
Audio Codec |
ALC887 |
|
Super I/O |
Nuvoton NCT6106D
|
|
Storage |
1x 2.5” SATA HDD/SSD 1x mSATA |
| External I/O | |
|---|---|
|
Serial |
3x RS-232 3x RS-232/422/485 |
|
USB |
4x USB2.0 4x USB3.0 |
|
Display |
VGA, HDMI
|
|
Ethernet |
Realtek RTL8111G x 2
|
|
PS/2 |
K/B x1, Mouse x1
|
|
Audio |
Line-out, Mic-in
|
|
D I/O |
N/A
|
|
Expansion |
1x Full-size Mini-PCIe
|
| PWR | |
|---|---|
|
System |
DC 12V ~ 24V
|
| Environment | |
|---|---|
|
OP Temp. |
0°C ~ 50°C
|
|
Storage Temp. |
-20°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
200 x 200 x 45 mm
|
|
Weight |
2 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3447 |
(R).RICH-33B0-8171 Full. w/COMx6/USBx8/Dual LAN/PS2/Audio
|
|
AS5-3452 |
(R).RICH-33B0-8171-TBC. w/Ex.PSW/COMx6/USBx8/Dual LAN/PS2/Audio
|
