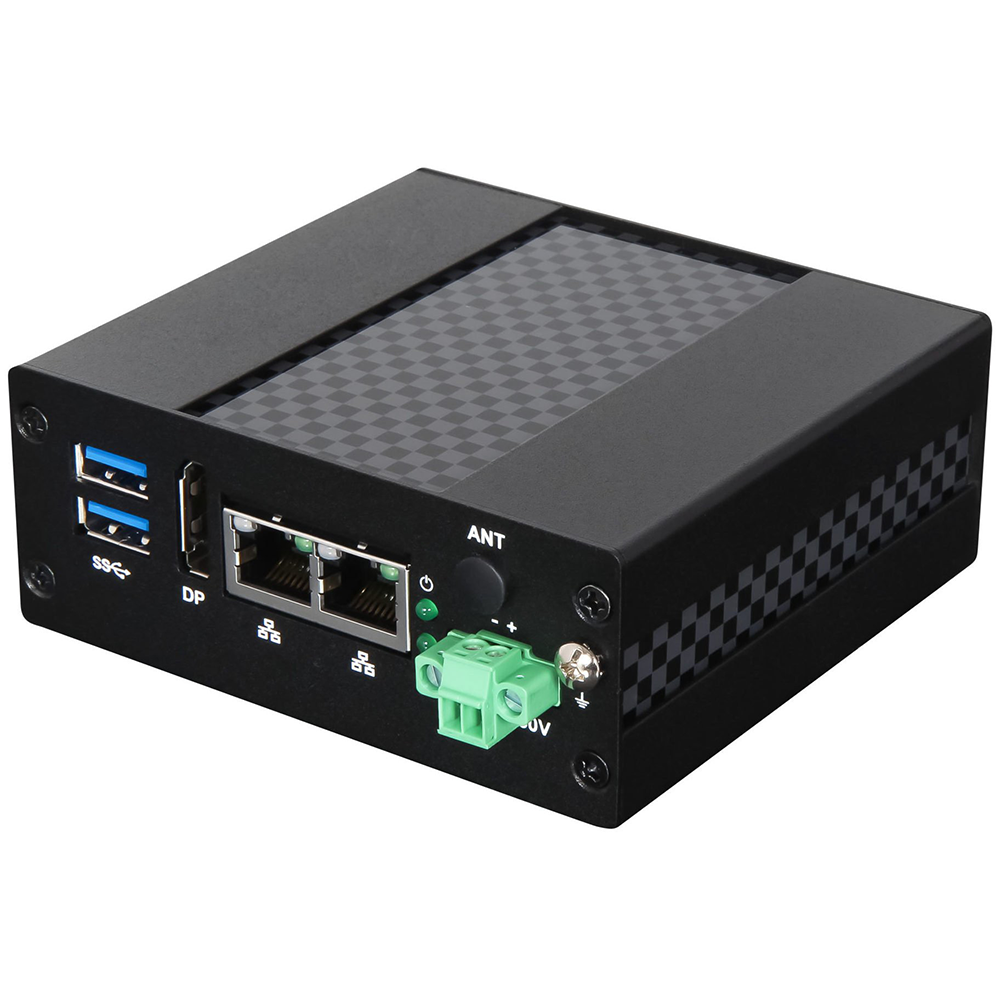

LYNX-6110_1000x1000

LYNX-6110

The Industrial NUC type Embedded Fanless Box-pc base model with Intel Celeron N3350 Apollo-Lake SoC, suitable for edge computing

Features :

Video

Description

The Industrial NUC type Embedded Fanless Box-PC LYNX-6110 is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor. Developed to meet heavy industrial standards, the rugged design makes sure its reliability as well as stability to work in harsh environment. By providing basic I/O interfaces in a palm-sized box, the system is suitable for industrial automation, smart factory, edge computing, and IIoT gateway applications.



Specification

General
Processor
Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory
4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional)
Storage
32GB onboard eMMC 5.0 flash; up to 256GB (Optional)
Power Input
12-30VDC (+/- 20%)
Operating System
Windows® 10 IoT Enterprise (64bit) Yocto v2.7
Expansion
1x M.2 Key E 2230 for wireless module
Other
TPM 2.0 onboard
Basic I/O Interface
Power Connector
1x 2-Pin Terminal Block
Ethernet
2x 10/100/1000 GbE (Intel® I210)
USB
2x USB 3.0
Display
1x DP v1.4 4096 x 2160 @ 60Hz
Certification
CE (EN 55032; EN 55024/ EN 55035)
CE (EN 61000-6-4; EN 61000-6-2)
FCC (Part 15 Subpart Class A)
LVD (EN 62368-1)
Environmental & Mechanical
Storage Temperature
-40 °C ~ 85 °C
Operating Temperature
0°C ~ 50°C
Permissible Humidity
5-95% RH operating, non-condensing
5-95% RH storage, non-condensing
Vibration
1G with DIN-rail mounting
5G with wall mounting (IEC/EN 60068-2-6)
Shock
15G with DIN-rail mounting
50G with wall mounting (IEC/EN 60068-2-27)
Degree of Protection
IP 30
Dimension
100mm (W) x 53.5mm (H) x 92 mm (D)
Net Weight
0.53 KG
Mounting
DIN-rail / Wall Mount
Optional Accessories
Power Adaptor
2-pin terminal block connector to DC jack cable
60W AC to DC Power Adaptor via DC jack
Video Adaptor
DP to VGA/ DP to DVI-D
