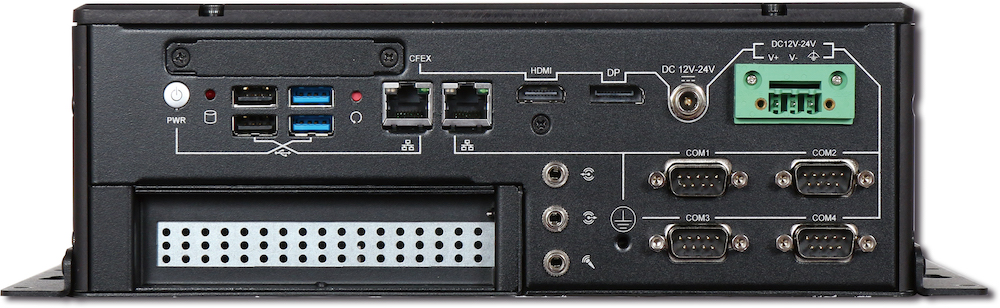

WEBS-5482-W

WEBS-5482-W

Embedded Rugged Fan-less System with Intel® Celeron® and Core™ i5/i7 based Specific Form Factor Board

Features :

Description

The WEBS-5482-W builds on Intel® Haswell ULT Low Power SoC and takes advantages of Intel® Core™ mobile processor technologies that can support dual channel DDR3L memory. Support two Gigabit Ethernet ports, onePCIe expansion slot, and two Mini-PCIe sockets. The rugged design with dual power input, WEBS- 5482-W, an ideal platform with HD graphic output for POS, kiosk, digital signage, and transportation applications.

Specification

System
WEBS-5482-W
M/B
PEB-5731-W
Form Factor
Specific Form Factor 170 x 135 mm
System
CPU
Intel® 4th Generation ULT Core™ i Processor
Chipset
Intel® SoC
BIOS
AMI UEFI
Memory
DDR3L/16GB
Graphic Controller
HD Graphics 4000 Family
Audio Codec
ALC892
Super I/O
EC ITE IT8528 + Fintek F81216
Storage
1x CFEX, 1x 2.5” SATA HDD/SSD
1x mSATA
External I/O
Serial
3x RS-232
1x RS-232/422/485
USB
2x USB2.0
2x USB3.0
Display
DVI-D, DP, HDMI
Ethernet
Intel® I218LM+I210AT
PS/2
N/A
Audio
N/A
D I/O
N/A
Expansion
1x Full-size Mini-PCIe 1x Half-size Mini-PCIe 1x PCIe
PWR
System
DC 12V ~ 24V
Environment
OP Temp.
-20°C ~ 50°C
Storage Temp.
-40°C ~ 80°C
Humidity
95%@40°C, non-condensing
Vibration
5Grms/10-500Hz
Shock
50G, 11 msec
Mechanical
Dimension(WxDxH)
255 x 187 x 86 mm
Weight
5 Kg
Ordering Guide
AS5-3404
(R).ATO.WEBS-5482-W.Haswell ULT. Fanless System.

Support (Documents & Downloads)

 WEBS-5482-W | Catalog    2015042  April 29, 2015Download

Catalog
1.59 MB  1059 Downloads


BIOS_WEBS-5482-W_R100E4.zip | BIOS    R1.00.E4 November 27, 2015Download

  1. Move item Serial Port RS485 Mode to OEM Page.
  2. Support SuperI/O F81216AD RS-485 mode control.
  3. Rename item “Serial Port RS485 Mode” to “RS-485 Auto Flow Control”.
10.09 MB  329 Downloads

BIOS_WEBS-5482-W_ R100E3.zip | BIOS    R1.00.E3  April 30, 2015Download

BIOS of WEBS-5482-W
4.88 MB  325 Downloads


Driver_WEBS-5482-W-Win7-PEDA-S1530_ZUxxx-series-USB-driver_3.50.0.5.zip | Driver    20141014  October 14, 2014 Download
ZU200 3G/GPS Driver for Windows 7
585.60 KB 676 Downloads
Driver_WEBS-5482-W-Win7-PEDA-S1530_Wi-Fi-Module-WPER-116Nv2.zip | Driver    20141014  October 14, 2014 Download
WPER-116GN WiFi Driver for Windows 7
32.75 MB 670 Downloads
Driver_WEBS-5482-W-Win7_PEDA-S1530_USB_3.0.zip | Driver    20141014  October 14, 2014 Download
USB 3.0 Driver for Windows 7
1.69 MB 767 Downloads
Driver_WEBS-5482-W-Win7-PEDA-S1530_ME9.5_5M_9.5.10.1580.zip| Driver    20141014  October 14, 2014 Download
iAMT Driver for Windows 7
66.84 MB 811 Downloads
Driver_WEBS-5482-W-Win7-PEDA-S1530_Inf.zip | Driver    20141014  October 14, 2014 Download
Chipset Driver for Windows 7
5.24 MB 760 Downloads
Driver_WEBS-5482-W-Win7-PEDA-S1530_Inf.zip | Driver    20141014  October 14, 2014 Download
Graphic Driver for Windows 7
237.79 MB 756 Downloads
Driver_WEBS-5482-W-Win7_PEDA-S1530_Audio | Driver    20141014  October 14, 2014 Download
Audio Driver for Windows 7
198.78 MB 761 Downloads
Driver_WEBS-5482-W-Win7-PEDA-S1530_Ethernet.zip | Driver    20141014  October 14, 2014 Download
Ethernet Driver for Windows 7
54.48 MB 764 Downloads

Manual_WEBS-5482-W_V1.0.pdf | Manual    V1.0  August 26, 2015Download

Manual of WEBS-5482-W
1.25 MB  250 Downloads

Certification_WEBS-5482-W-B-0272_FCC.pdf | Certification    20150429  April 29, 2015Download

WEBS-5482-W_FCC Certification
191.92 KB 245 Downloads

Certification_WEBS-5482-W-A-0304_CE.pdf | Certification    20150429  April 29, 2015Download

WEBS-5482-W_CE Certification
196.53 KB 232 Downloads


Drawing_WEBS-5482-W | Drawing    20150430  April 30, 2015Download

Drawing of WEBS-5482-W
187.17 KB 278 Downloads
