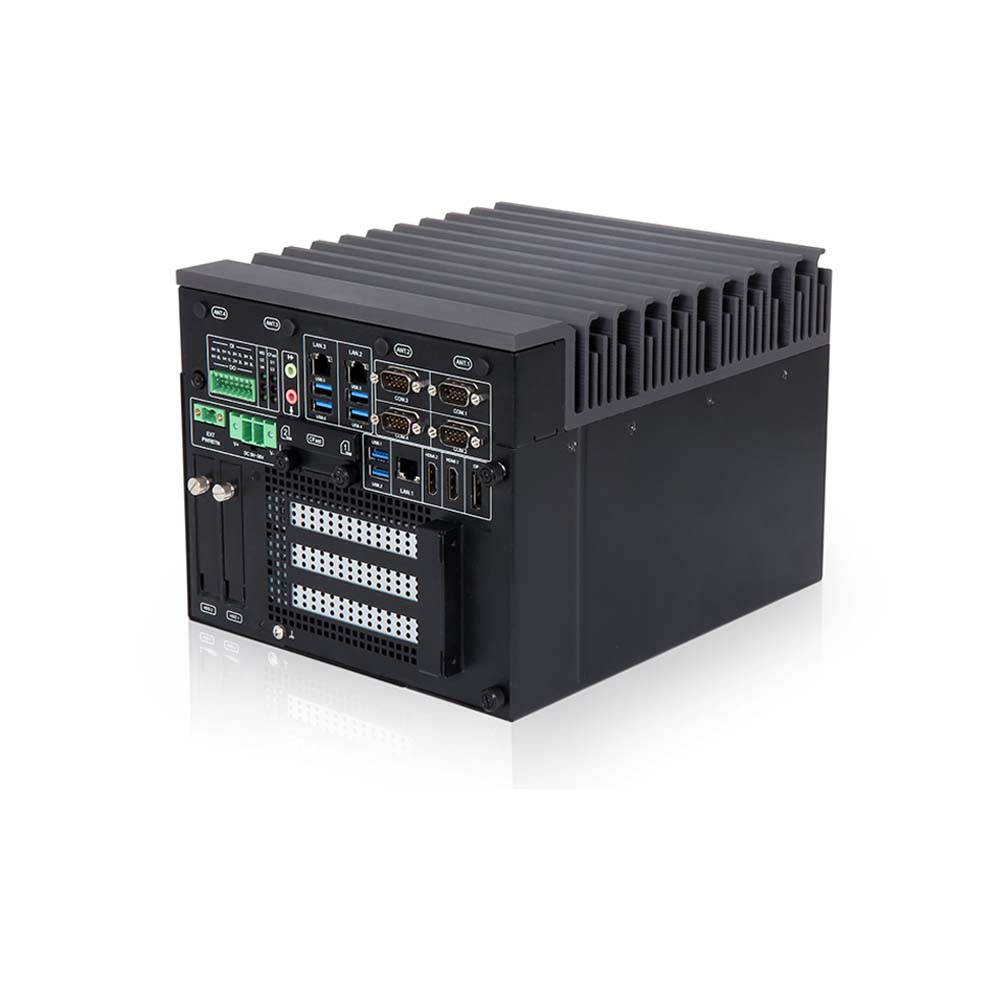

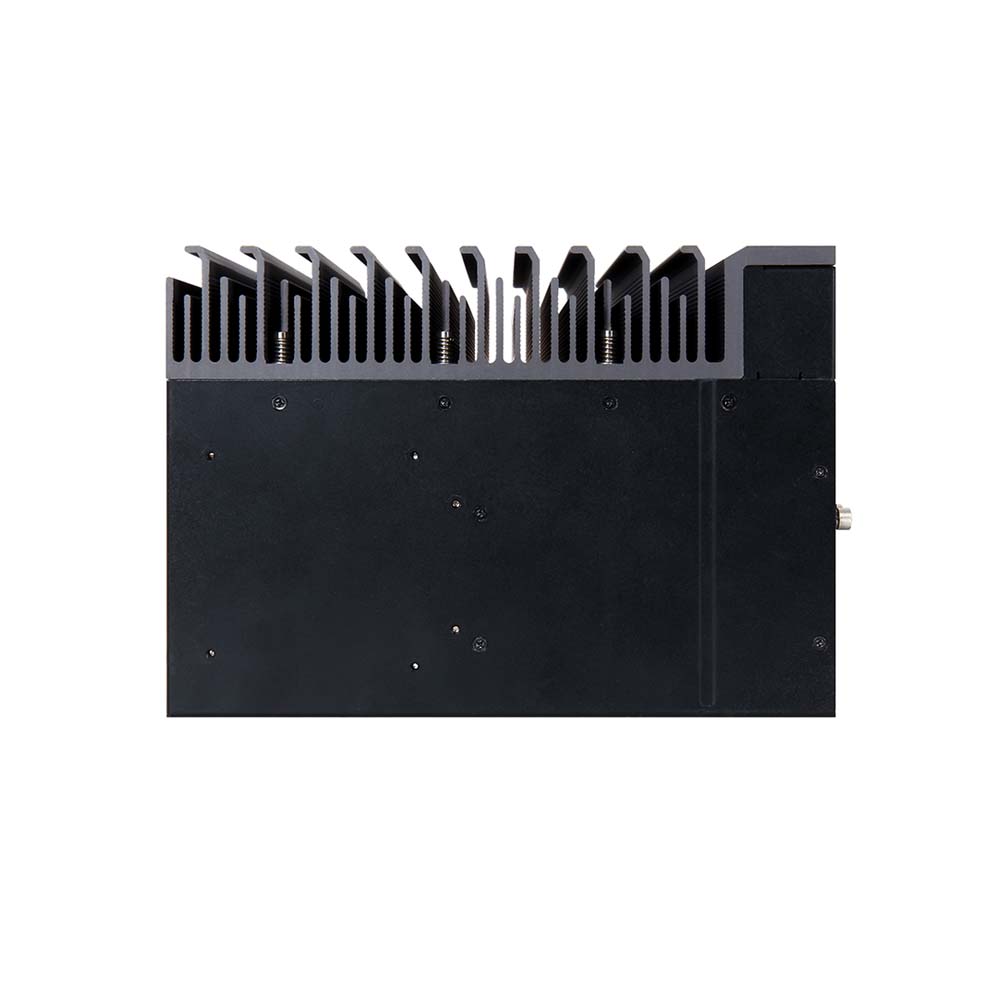

WEBS-85H2
Embedded Rugged PC with 10th Generation Intel® Core™ i3/i5/i7/i9 based Proprietary Board, 3-Expansion slots, Dual HDMI, DP
Features :
- Support 10th Generation Intel® CoreTM i3/i5/i7/i9 processors
- Different add-on card expansion options
- Support 64 GB DDR4 2400/2666 Non- ECC SDRAM
- Support triple displays including HDMI 1.4, HDMI 2.0, DP
- Support Mini-PCIe socket, M.2 2242/60/80 M key socket and M.2 2230 E key socket
- Support 4x COM ports ( 1x RS- 232/422/485, CANbus (2.0 A/B) selected by on board jumper)
- 4 x Antenna hole for WiFi and 4G/GPS module to use
- Onboard TPM 2.0
Description
Portwell’s Fanless Box PC WEBS-85H2 builds on Intel® desktop W480E chipset and takes advantages of 10th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support dual DDR4 memory. Support three Gigabit Ethernet ports , one M.2 M Key socket, one M.2 E Key socket, one Mini-PCIe socket and 3x PCIe Expansion Slot option. The WEBS- 85H2 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, factory automation and surveillance security monitoring applications.
Specification
| System | |
|---|---|
|
M/B |
Proprietary
|
|
CPU |
10th Generation Intel® Core™ i3/i5/i7/i9 Processors (35W TDP)
|
|
BIOS |
AMI UEFI BIOS
|
|
Memory |
2x SO-DIMM sockets support DDR4 2400/2666 Non-ECC Up to 64 GB
|
|
Storage |
– 1x Type II CFast slot – 2x 2.5” SSD slots |
|
Watchdog Timer |
HW WDT Enable (WDT_EN)
|
|
TPM |
TPM 2.0 |
|
Expansion |
– 3x PCIe Expansion Slot option: – (1x PCIe x16 + 1x PCIe x4 or 2x PCIe x8 + 1x PCIe x4 (auto-detect)) – 1x Mini PCIe socket (supports mSATA or cellular module) – 1x M.2 2242/60/80 M key socket (PCIe x4 & SATA mode) – 1x M.2 2230 E key socket (supports CNVi, Wi-Fi/BT module) |
| External I/O | |
|---|---|
|
Serial Port |
4x COM port (1x RS-232/422/485, CANbus (2.0A/B) selected by on board jumper)
|
|
Display |
– 1x HDMI 2.0, supports up to 4096 x 2160 @ 60 Hz – 1x HDMI 1.4, supports up to 4096 x 2160 @ 30 Hz – 1x DP 1.2, supports up to 4096 x 2304 @ 60 Hz |
|
USB |
– 2x USB 3.2 Gen 2 – 4x USB 3.2 Gen 1 |
|
Audio |
Mic-in / Line-Out
|
|
Ethernet |
3x Gigabit Ethernet (Intel® I210-IT )
|
|
DIO |
4x DI, 4 x DO |
|
SIM |
2x nano SIM card slot |
| Power Supply Unit | |
|---|---|
|
Power Input |
9 to 36 VDC, 2-pin terminal block connector
|
| Environment | |
|---|---|
|
Operation Temperature |
-20°C ~ 60°C
|
|
Storage Temperature |
-40°C ~ 80°C |
|
Relative Humidity |
60°C, 95%RH non-condensing
|
|
Operation Vibration |
Desk mount: 0.5 Grms (10 Hz to 500Hz) System: 1Grms (10 Hz to 500Hz) |
|
Operation Shock |
Desk mount: 15G, 11 msec System: 50G, 11 msec |
| Mechanical | |
|---|---|
|
Dimension |
210(W) x 250(D) x 176.2(H) mm
|
|
Weight |
7 Kg
|
|
Mounting |
Desk mount
|
