WEBS-45J1
Embedded Rugged Fan-less System with 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board
Features :
- Support 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 processors
- Two SO-DIMM support DDR5 DRAM up to 96GB
- Support triple DP and one HDMI® display
- Support One M.2 E Key, One M.2 M Key
- Support 4x COM ports (2x RS-232/422/485)
- 2x Antenna holes for WiFi module
- Optional pre-assembled with Hailo-8 M.2 M Key AI Accelerator Module
Description
The WEBS-45J1 builds on Intel® desktop Q670E chipset and takes advantages of 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support dual DDR5 memory and 2x SATA Ports for storage. Support two Gigabit Ethernet ports, One M.2 E Key, One M.2 M Key socket. The WEBS-45J1 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.
Specification
| System | |
|---|---|
|
M/B |
WADE-8213 |
|
CPU |
Supporting Intel® 14th/13th/12th Gen Core™ CPU (LGA1700 socket, 35W TDP) — Intel® Core™ i9-14900T — Intel® Core™ i7-14700T — Intel® Core™ i5-14500T — Intel® Core™ i3-14100T — Intel® Core™ i9-13900TE — Intel® Core™ i7-13700TE — Intel® Core™ i5-13500TE — Intel® Core™ i3-13100TE — Intel® Core™ i9-12900TE — Intel® Core™ i7-12700TE — Intel® Core™ i5-12500TE — Intel® Core™ i3-12100TE |
|
BIOS |
AMI UEFI BIOS
|
|
Memory |
–Supports two DDR5 dual channel up to 96GB SO-DIMM sockets –Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs |
|
Storage |
2x SATAIII ports |
|
Watchdog Timer |
Programmable watchdog timer
|
|
TPM |
TPM 2.0 (Optional) |
|
H/W Status Monitor |
System monitor (Voltage, Temperature)
|
|
Expansion |
– 1x M.2 E Key 2230 with PCIe x1, CNVI for Wireless – 1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD |

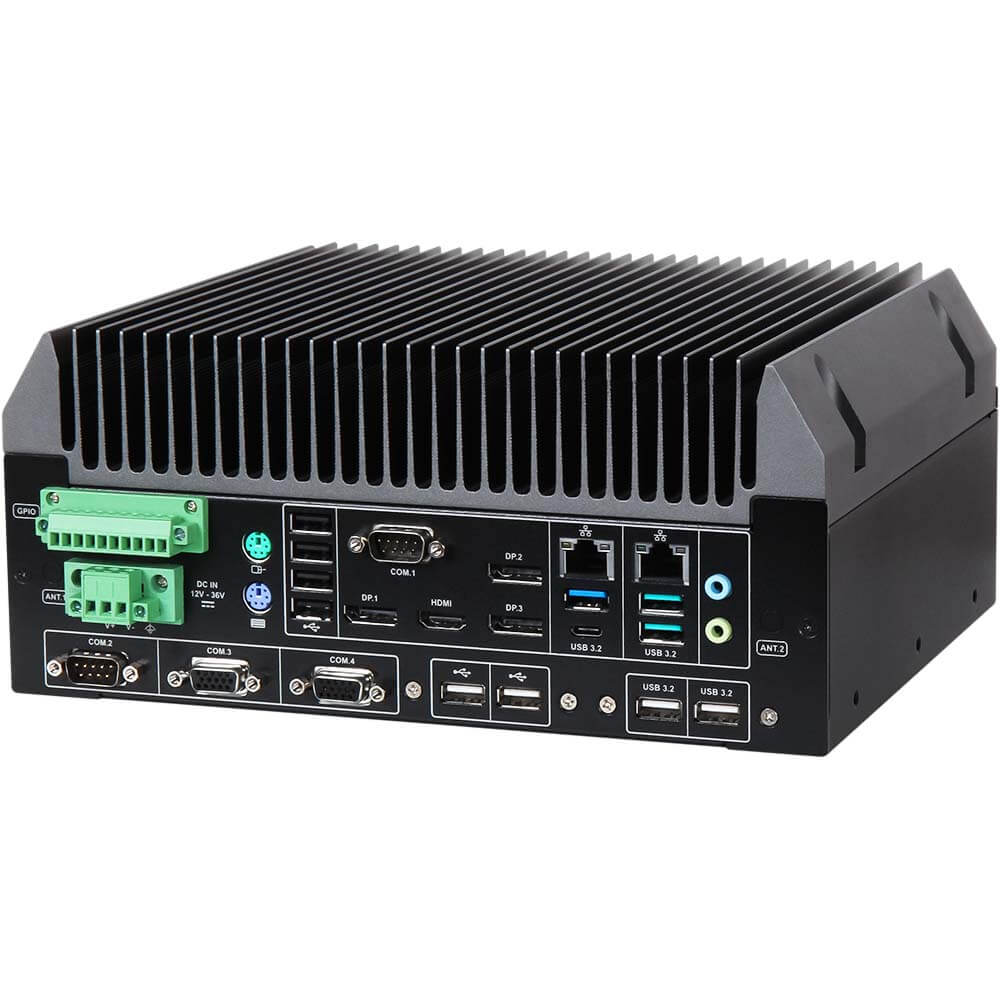

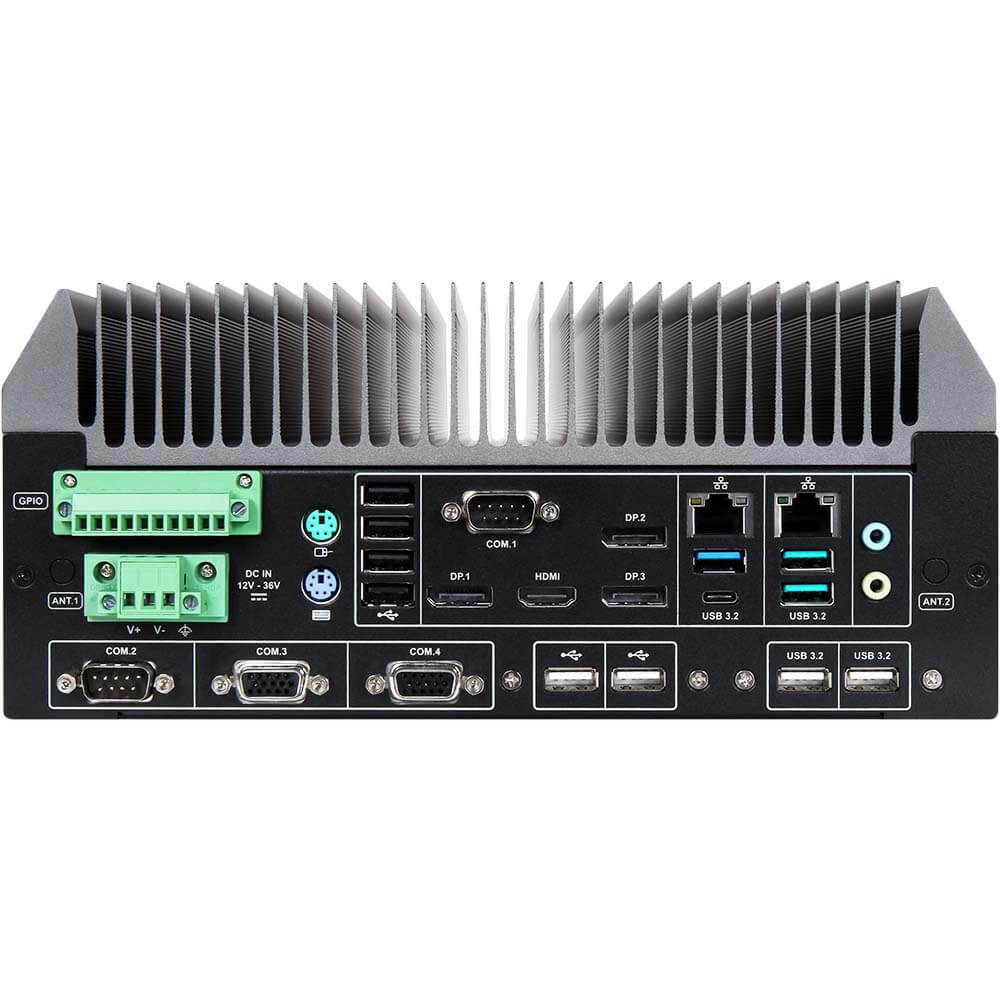

| External I/O | |
|---|---|
|
Serial Port |
4x COM ports (1x RS- 232/422/485) |
|
Display |
–3x DP resolution up to 8K
–1x HDMI |
|
USB |
–3x USB 3.2 Gen 2 (2x Type A+ 1x Type C) –3x USB 3.2 Gen 1 –6x USB 2.0 |
|
Audio |
Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller
|
|
Ethernet |
–Intel® I210AT(1GbE) + Intel® I225LM(2.5GbE)
–2x RJ45 connectors |
|
GPIO |
1x Programmable 8-bit Digital I/O |
|
Other |

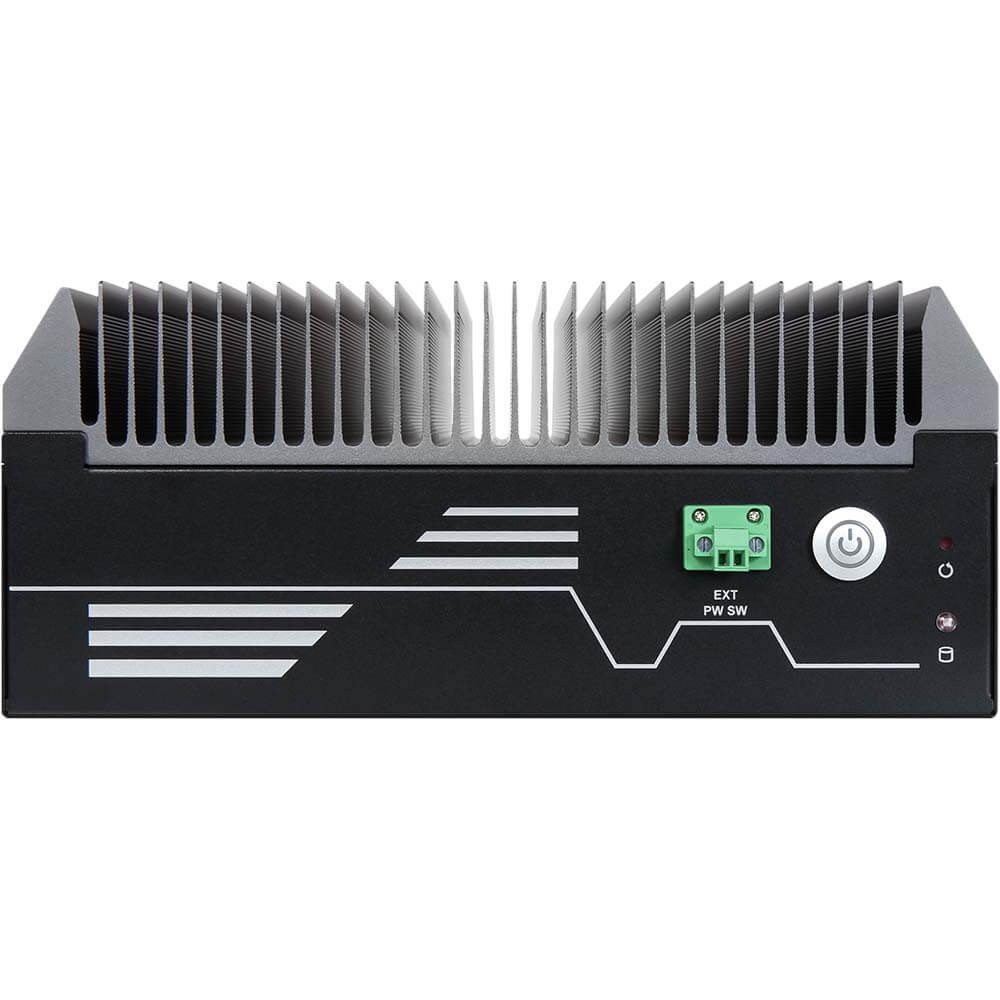

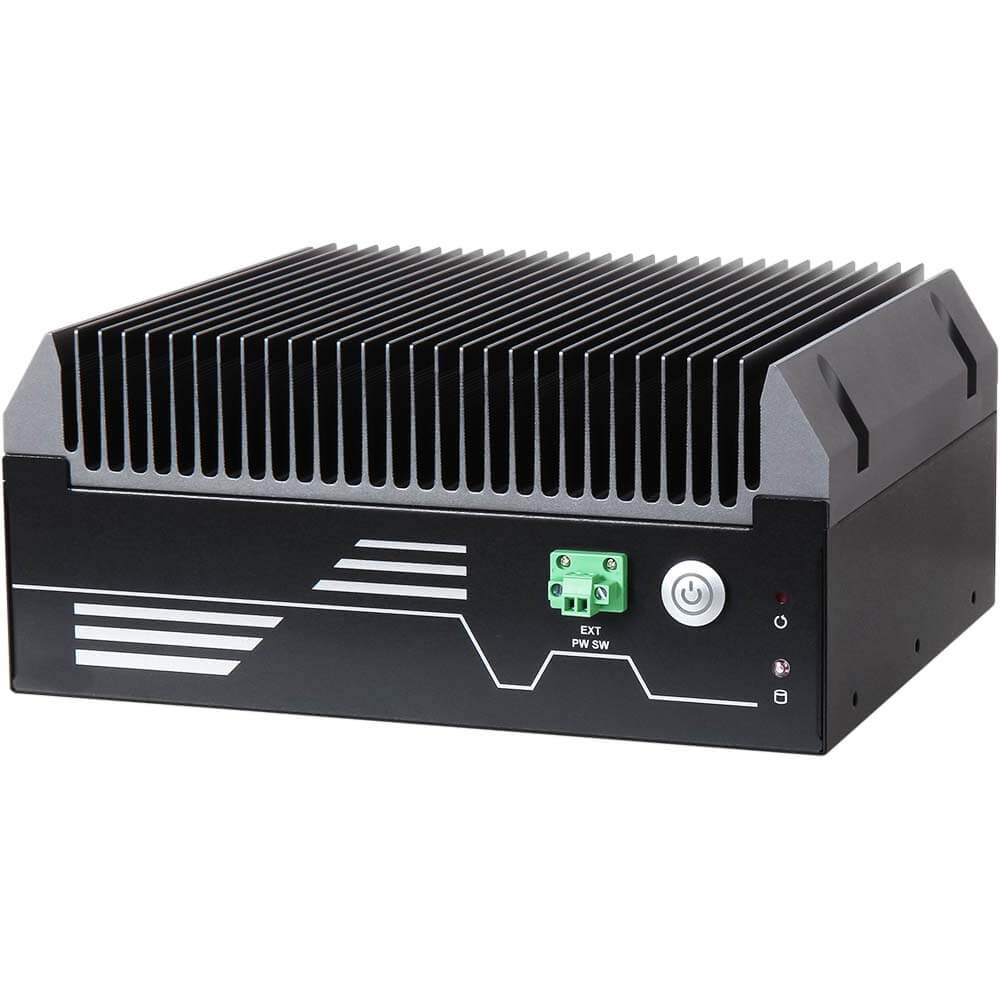

– 2x Antenna hole for Wi-Fi module – 1x EXT Power Switch |
| Power Supply Unit | |
|---|---|
|
Power Input |
DC 12V ~ 36V with 3-pin Terminal Block Connector |
| Environment | |
|---|---|
|
Operation Temperature |
-20°C ~ 60°C
|
|
Storage Temperature |
-40°C ~ 80°C |
|
Relative Humidity |
40°C, 95%RH non-condensing
|
|
Operation Vibration |
1Grms/10-500Hz, IEC 60068-2-6
|
|
Operation Shock |
50G, 11 msec, IEC 60068-2-27 |
| Mechanical | |
|---|---|
|
Dimension |
253 (W) x 201(D) x 111.8 (H) mm |
|
Weight |
5.25Kg |
|
Mounting |
Wall mounting |
