PJAI-1100F
PJAI-1100F

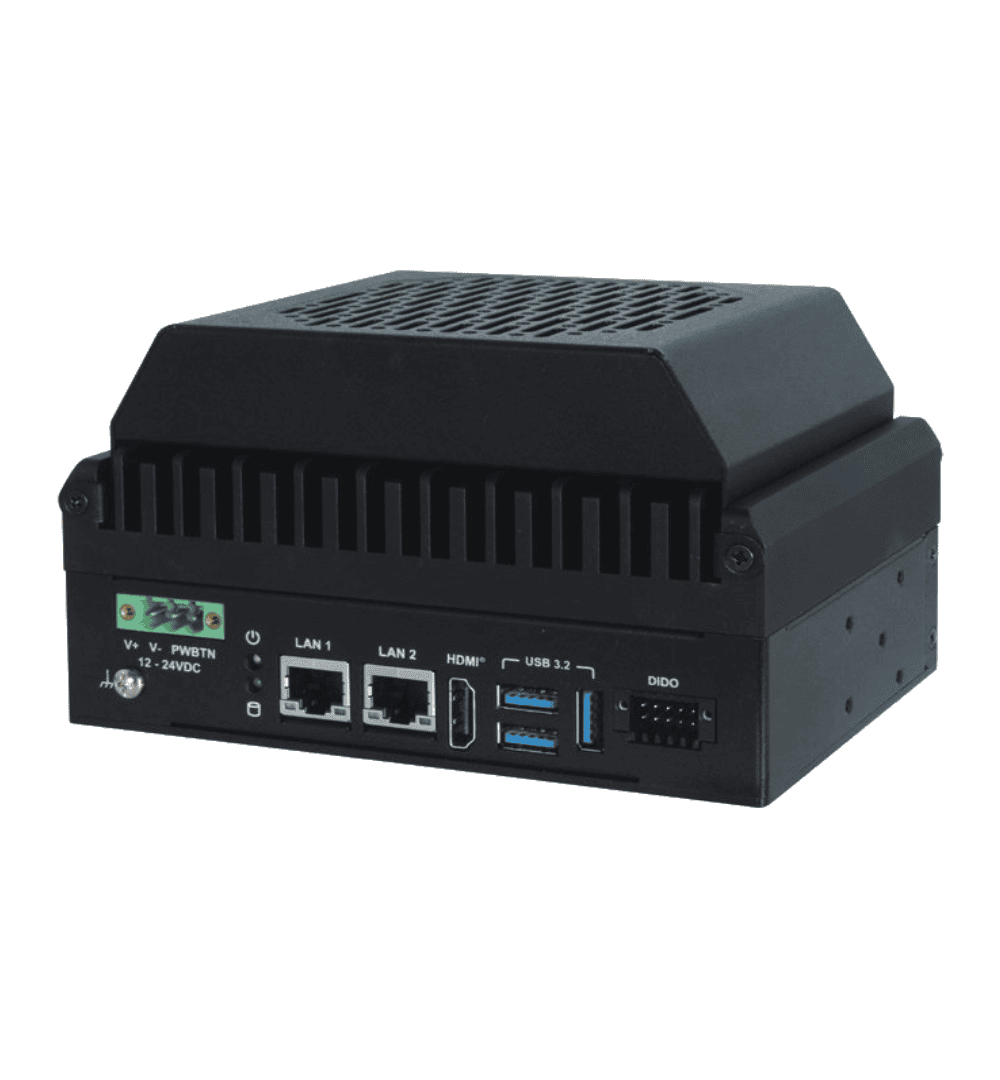

Compact System with NVIDIA®Jetson Orin NX™ PJAI-1100F-OX
for Edge AI Applications
Features :
- Compact System with NVIDIA®Jetson Orin module up to 157 TOPS
- 8GB/16GB 64-bit LPDDR5 (By SOM)
-
Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052
B-Key,1x M.2 2280 M-Key NVMe (PCIe x4) and
2x Nano SIM slots - Supports 2x RJ45 GbE and 3x USB 3.2 Type A ports
- 2x DB9 COM ports and 1x DB9 CANbus
| General | |
|---|---|
| Processor | NVIDIA® Jetson Orin™ NX 8GB NVIDIA® Jetson Orin™ NX 16GB |
| Memory | Support up to 16GB LPDDR5 on board |
| Storage | 1 × M.2 Key-M NVMe PCIe x4 2280 |

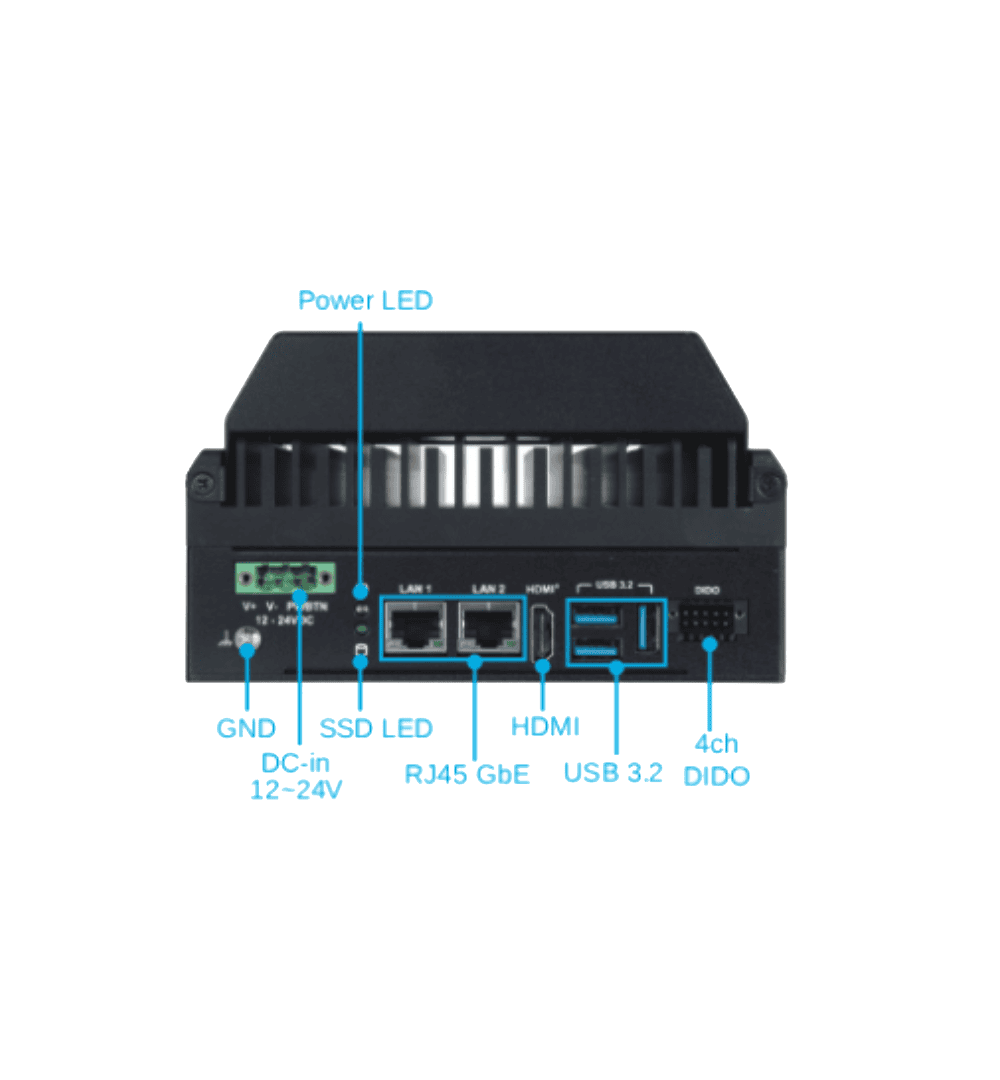

| Rear I/O | |
|---|---|
| Ethernet | 2 × 1 GbE LAN |

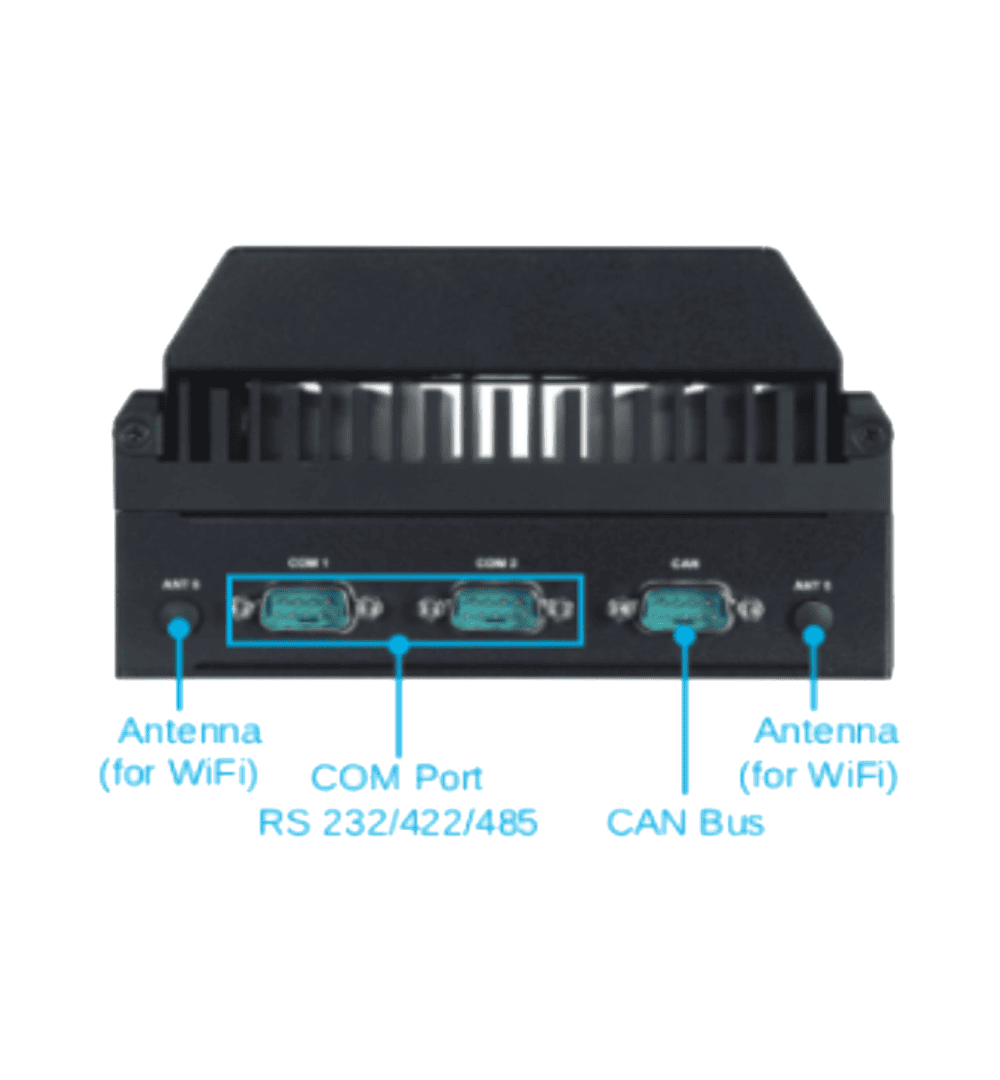

| Serial Port | 2 × COM Ports Support RS-232/422/485 1 × CANbus FD |
| USB | 3 × USB 3.2 Gen2 x1 (10Gbps) Type A 1 × USB 3.2 Gen2 x1 (10Gbps) Type C |
| GPIO | 1 × 8-bit Digital I/Os |
| Display | 1 × HDMI® 2.0b |

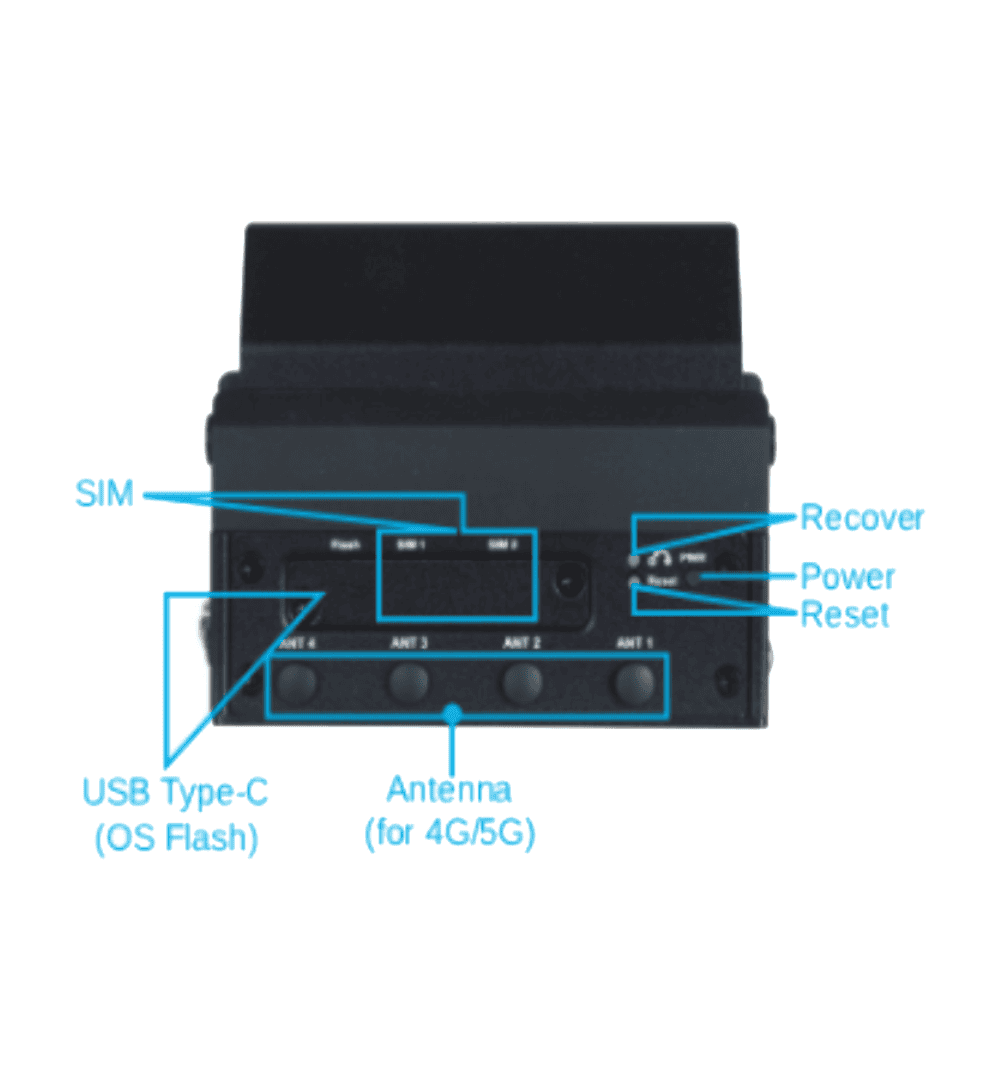

| Other | Power Button, Reset Button, Recovery Button |
| LED | Power, Storage |
| Antenna | 6 × SMA Antenna holes for LTE / 5G / Wi-Fi |
| SIM Slots | 2 × Nano-SIM |
| Mechanical / Environment | |
|---|---|
| Dimension (W × D × H) | 152 × 112 × 90 mm (5.98″ × 4.41″ × 3.54″) |
| Weight | 1.61 kg |
| Power Supply | Terminal Block 12~24V |
| Mounting | Wall Mount |
| Vibration | 1G 5~500Hz with Wall Mount (IEC/EN 60068-2-6) |
| Shock | 50G 11 ms with Wall Mount (IEC/EN 60068-2-27) |
| Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Cooling | System Fan |
| BSP | 6.2 |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE / FCC / UKCA Class A |
| OS | Linux™ |
Ordering Guide
| P/N | Model | Description |
|---|---|---|
| AS5-3724 | PJAI-1100F-OX8G | (R).ATO.PJAI-1100F-OX8G. Embedded System. NVIDIA Jetson Orin NX (8GB) (260-pin SO-DIMM), 12~24V |
| AS5-3725 | PJAI-1100F-OX16G | (R).ATO.PJAI-1100F-OX16G. Embedded System. NVIDIA Jetson Orin NX (16GB) (260-pin SO-DIMM), 12~24V |
