PJAI-100-ON
PJAI-100-ON

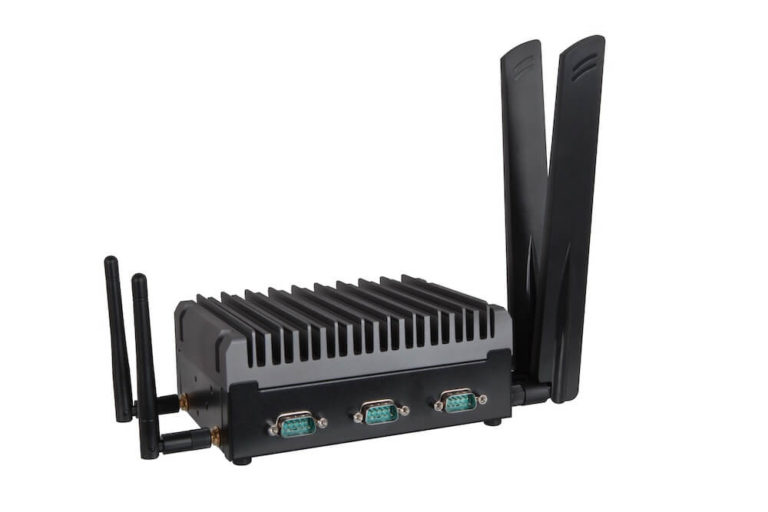

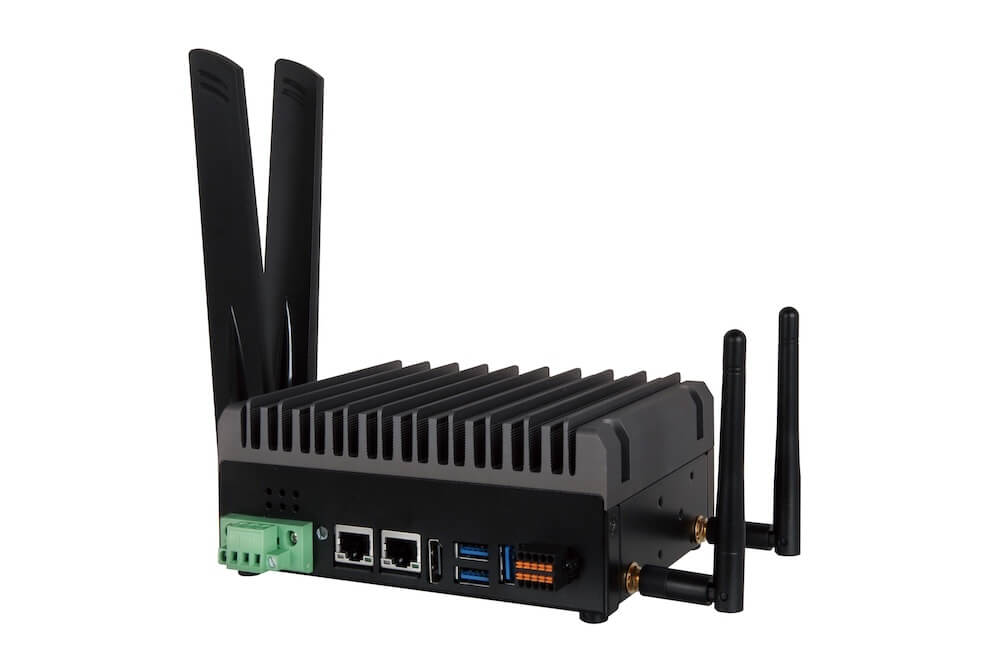

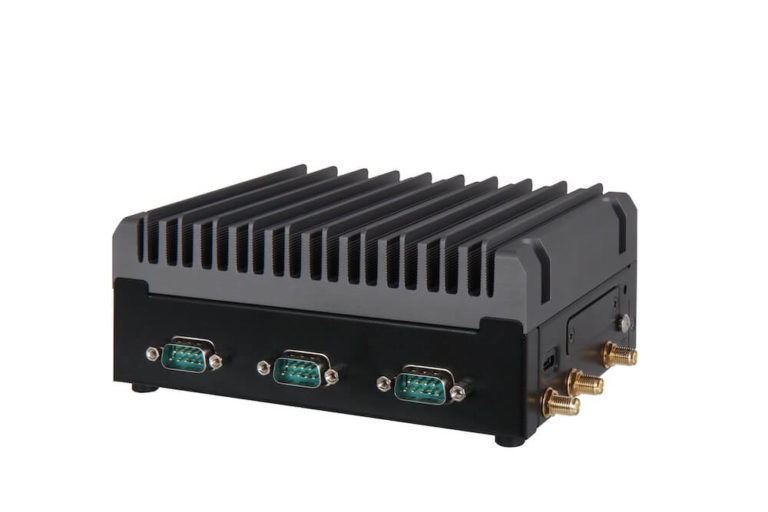

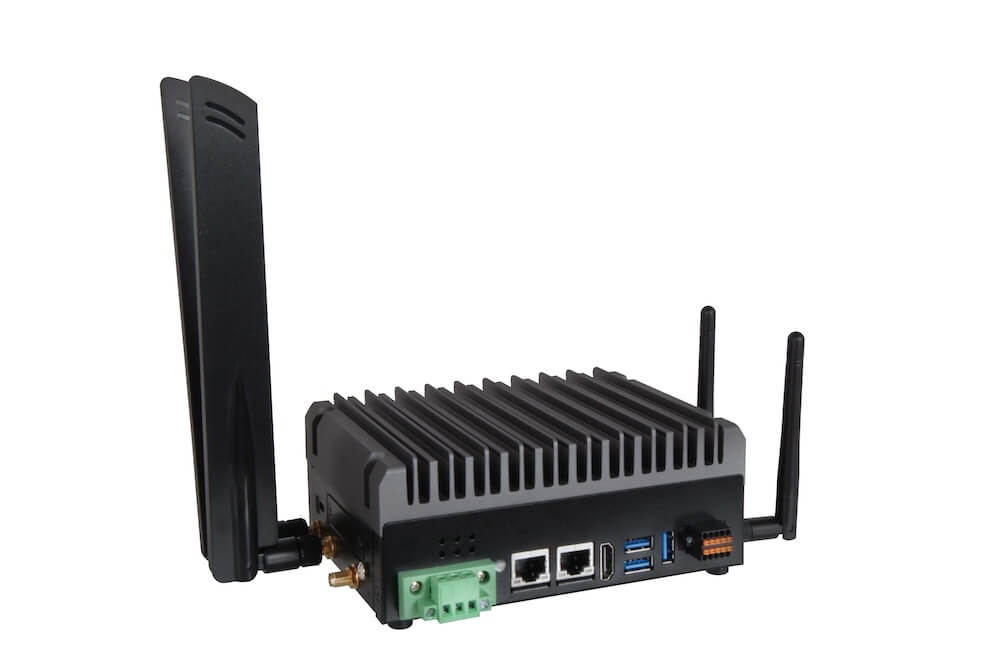

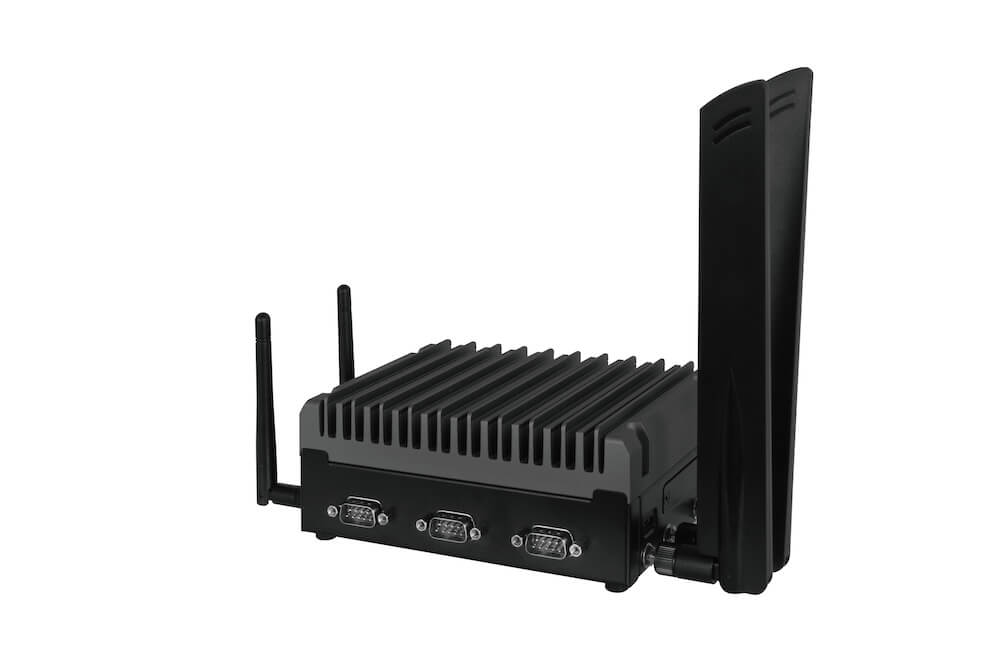

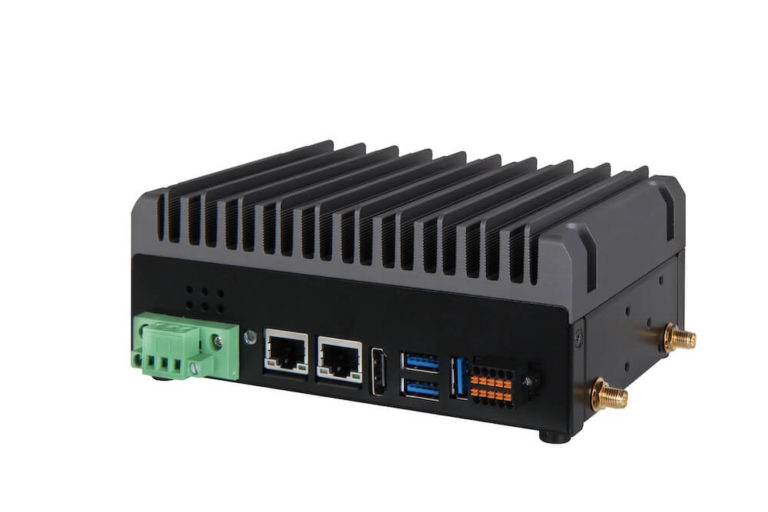

Fanless Compact System with NVIDIA® Jetson Orin Nano™ SOM for Edge AI Applications
Features :
- Fanless System with NVIDIA® Jetson Orin Nano™ SOM
- 4GB/8GB 64-bit LPDDR5 (By SOM)
- 1x M.2 2280 M-Key NVMe (PCIe x4)
- Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key and 2x Nano SIM slots

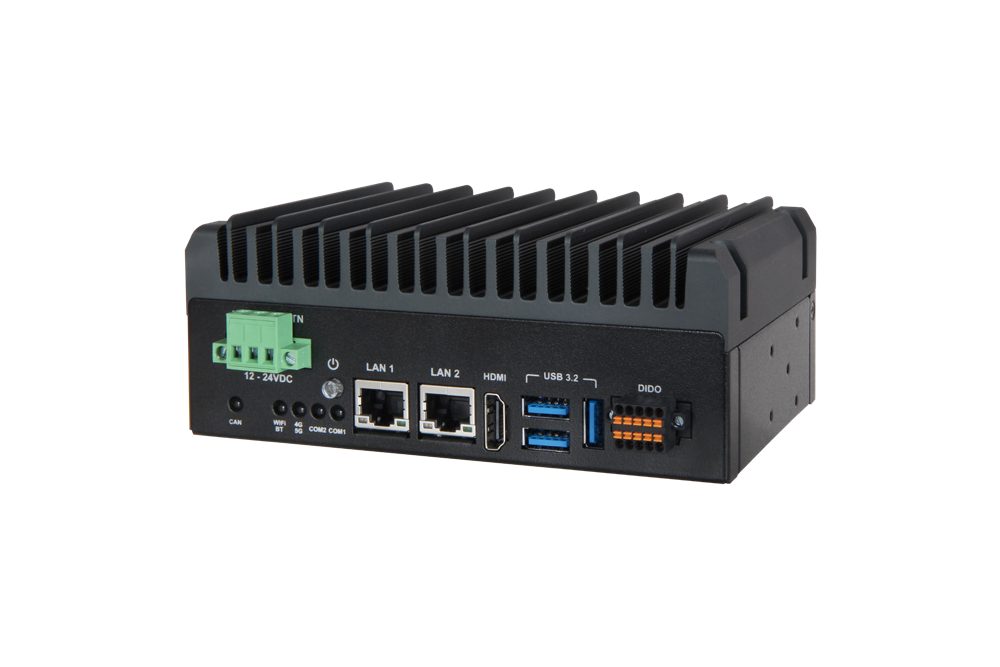

- Supports 2x RJ45 GbE and 3x USB 3.2 Type A ports

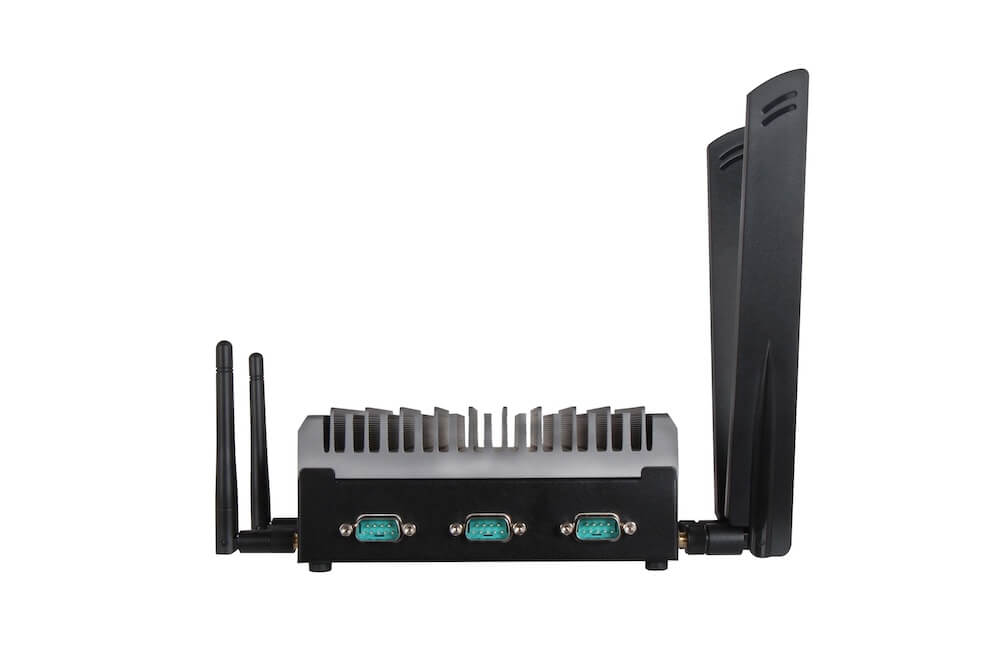

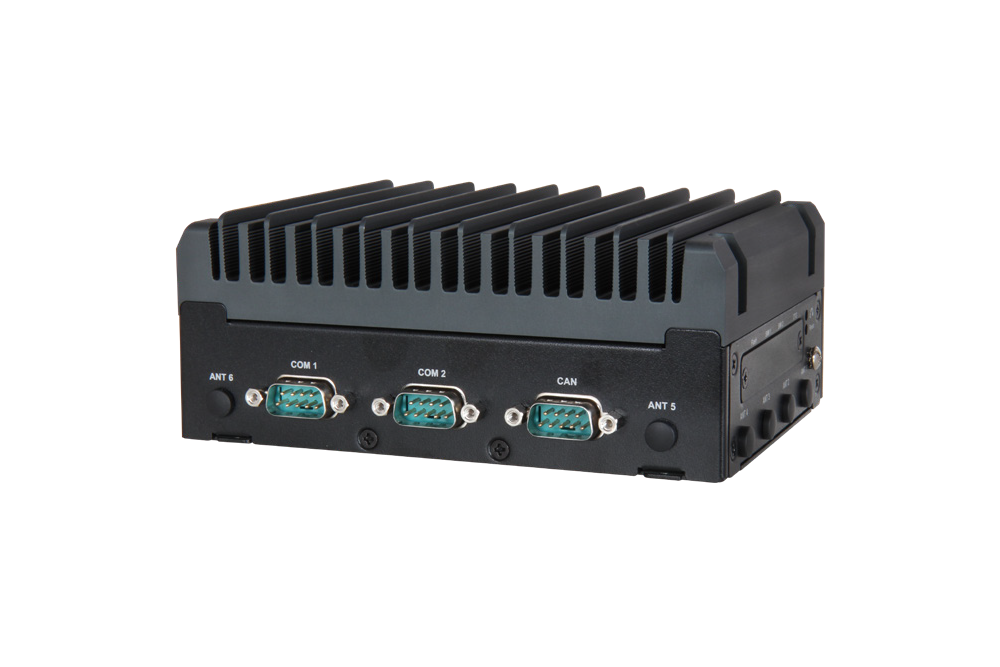

- 2x DB9 COM ports and 1x DB9 CANbus
Description
Designed with NVIDIA® Jetson Orin Nano™ SOM, Portwell’s rugged and compact PJAI-100-ON supports a wide industrial temperature range from -20°C to 60°C, while its fan-less design ensures silent operation, reliability and low maintenance rate. In addition, it integrates M.2 Type E and M.2 Type B for wireless connectivity, and the support of dual Gigabit Ethernet LAN ports suitable for Edge AI applications and more.
Specification
| General | |
|---|---|
| SOM | NVIDIA® Jetson Orin Nano™ |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 CPU |
| Memory | 4GB/8GB 64-bit LPDDR5 (By SOM) |
| Storage | 1x M.2 2280 M-Key (PCIe x4) |
| Expansion | 1x M.2 3042/3052 B-Key 1x M.2 2230 E-Key 2x Nano SIM slots |

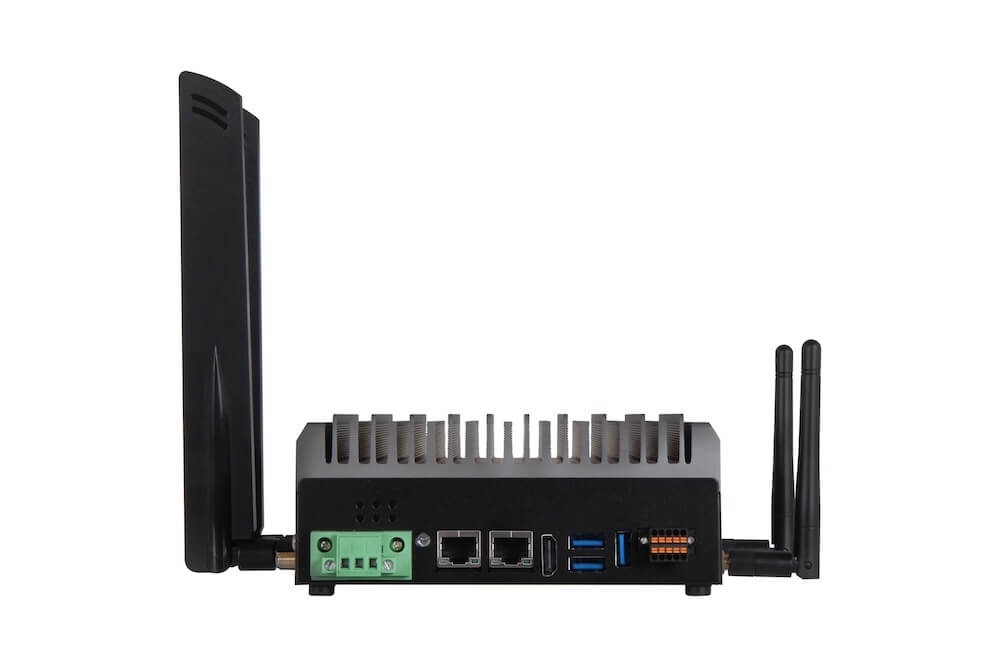

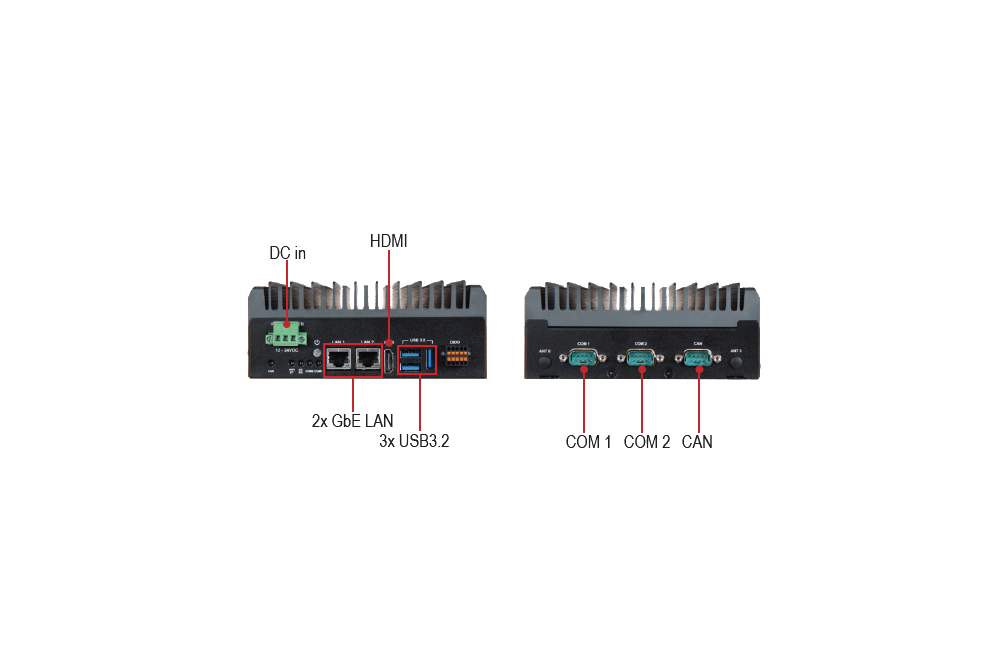

| External I/O | |
| Serial Port | 2x DB9 COM port for RS-232/422/485 1x DB9 CANbus |
| Display | 1x HDMI (Max. resolution 3840×2160 @ 60Hz) |
| USB | 3x USB 3.2 Gen1 Type-A 1x USB 2.0 Type C for OS Flash |
| Ethernet | 2x RJ45 GbE ports |
| DIDO | 8x DIDO |
| Power Supply | |
| Power Input | DC IN 9V~30V with 3-pin terminal block |
| Environmental | |
| Operating Temperature | -20°C~60°C (-4°F~140°F) |
| Storage Temperature | -40°C~80°C (-40°F~176°F) |
| Relative Humidity | 5~95%@40°C, non-condensing |
| Mechanical | |
| Dimension | 152 (W) x 112 (D) x 62 (H) mm (5.9“ x 4.4“ x 2.5“) |
| Weight | 1.4 kg (3.08 lbs) |
| Mounting | Wall, DIN-rail mounting |
